Specifications |
|
Cabinet Impedance (Ohms) |
8 |
Power @ min. impedance (Watts) |
40 |
Minimum Impedance (Ohms) |
4 |

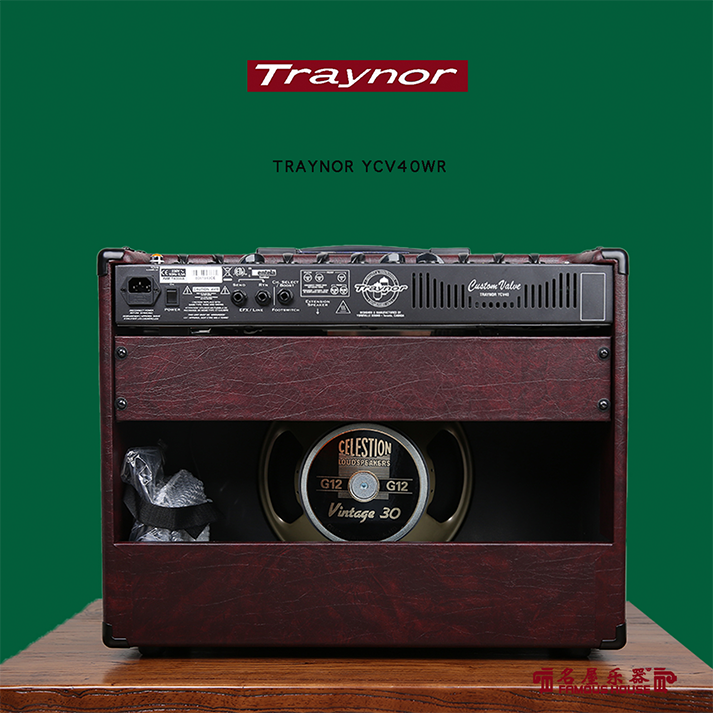

Speaker Configuration – LF (Size / Power) |
12 inch / 40 Watts |
Inputs |
2 |
Channel 1 – Inputs |
1/4 inch phone |

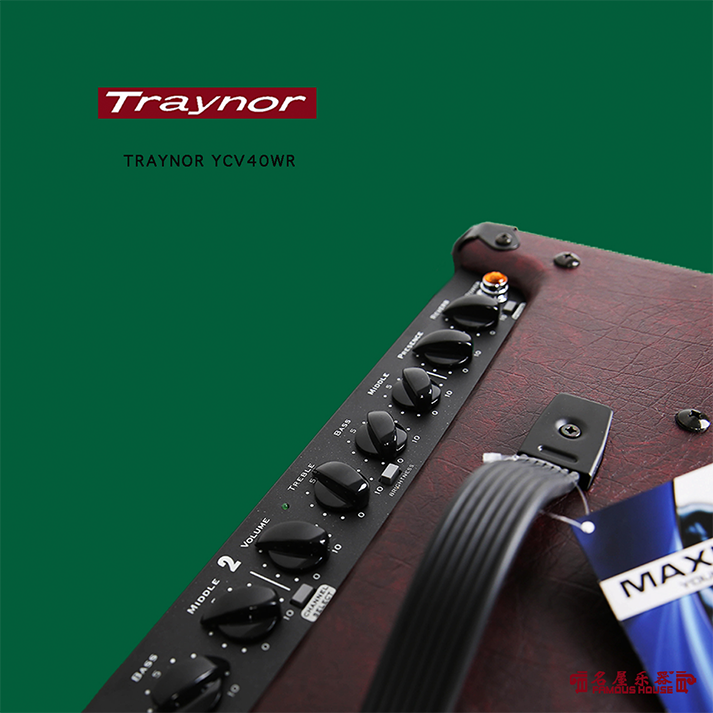

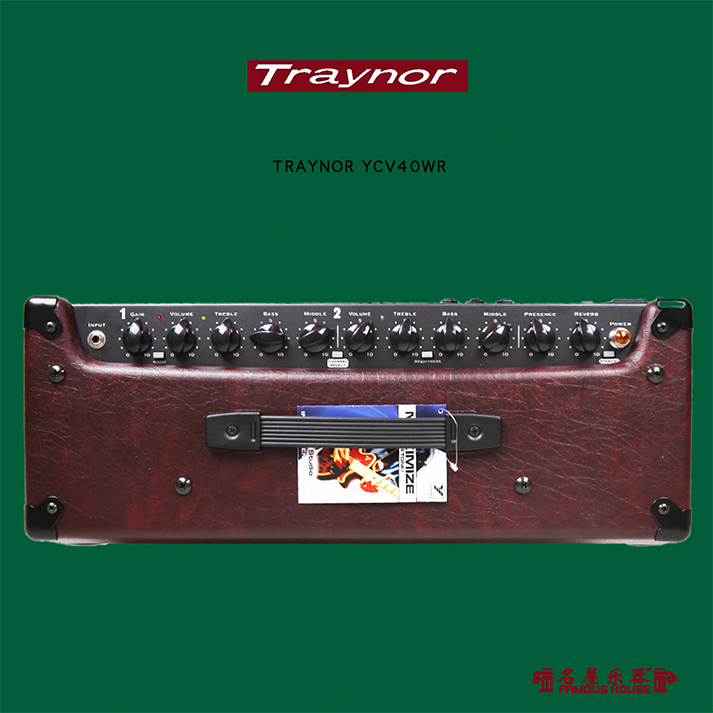

Channel 1 – Controls |
Gain, Volume, Treble, Bass, Middle |
Channel 1 – Switches |
Boost |
Channel 2 – Inputs |
Shares ch 1 input |
Channel 2 – Controls |
Volume, Treble, Bass, Middle |
Channel 2 – Switches |
Channel Select, Brightness |
Channel Switching |
Yes |
Main Tone Controls |
Presence |

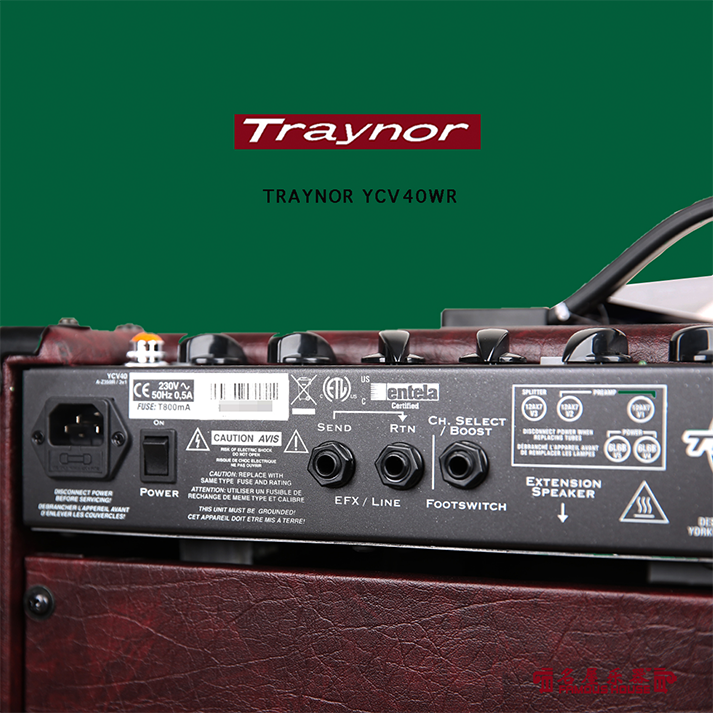

Line Out (type / configuration) |
1/4 inch TRS / Rear (Effects Send) |
Effects Volume |
Yes |
Effects Loop / Location |
Yes / Rear |
Effects Footswitch / Function |
Yes / Channel Select, Boost |
Internal Reverb / Effects |
Spring Reverb |
LED Indicators |
Channel Select, Boost, Power, Standby |
External speaker output / location |
1/4 inch / Rear |
Other Features |
Standby Switch – Activates standby mode to keep the tubes warm while the amp is not in use. |
Auto Tube-matching Circuit |
|
Preamp Tube – 3x 12AX7WA Dual Triodes (Russia) |
|
Power Amp Tube – 2x 6L6GB Beam Power Tubes (Russia) |
|
DC filaments on preamp tubes eliminate hum |
|
Fully regulated power supply with tube rectifier emulation |
|
Perforated Steel Grille |
|
Dimensions (DWH, inches) |
9.5 x 23 x 18 |
Dimensions (DWH, cm) |
24 x 58 x 46 |
Weight (lbs / kg) |
45 / 20.4 |
|
Specifications subject to change without notice |
[功率] | 40W |
[产地] | 加拿大 |
[通道] | 2 |
[扬声器规格] | 单12英寸 百变龙喇叭 |
[音箱尺寸] | 24 x 58 x 46(cm) |
